    BSD Camera Advanced Vision System for Automotive and Industrial Applications

    Ask Lasest Price
    Brand Name : Vanwin
    Model Number : VW-236BSD
    Certification : CE/FCC/RoHS
    Price : Negotiated
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 50,000pcs per month
    Delivery Time : 2-3 days for samples,15-30 days for bulk orders
    • Product Details
    • Company Profile

    BSD Camera Advanced Vision System for Automotive and Industrial Applications

    BSD Camera With Built-in Algorithm
    The BSD (Blind Spot Detection) Camera with Built-in Algorithm is a cutting-edge vision system designed to revolutionize safety and operational efficiency in automotive, industrial, and smart infrastructure applications. Combining high-resolution imaging with advanced embedded AI, this camera delivers real-time object detection, collision avoidance, and environmental awareness—all processed locally for zero latency and maximum reliability. All of our cameras undergo strict and comprehensive production tests to ensure structural stability and functional reliability in various working environments. Provide customers with a longer service life.

    BSD Camera Specifications:

    SensorSony STARVIS™ CMOS (1/2.8")
    Resolution1080p (1920×1080) or 4K (3840×2160)
    Frame RateUp to 60 FPS
    Dynamic Range>120 dB HDR
    Field of View (FOV)150° ultra-wide angle
    Lens Aperturef/1.6, 6G+IR glass
    Low-Light Performance0.01 lux (color) / 0.001 lux (B&W, IR-cut removed)
    Processing
    ProcessorDual-core ARM Cortex-A53 + Neural Processing Unit (NPU)
    AI Compute Power2 TOPS (Tera Operations Per Second)
    Latency<50 ms end-to-end processing
    Pre-installed AlgorithmsBlind spot detection, pedestrian/vehicle tracking, obstacle recognition
    Custom Algorithm SupportYes (via SDK/API)
    Connectivity
    InterfacesCAN, LIN, Ethernet (PoE support)
    Data OutputRTSP, ONVIF, TCP/IP
    Wireless OptionsOptional Wi-Fi/4G/5G module (add-on)
    Power & Environment
    Power Supply12-24V DC
    Power Consumption<3W (low-power mode), <5W (full operation)
    Operating Temperature-30°C to +85°C
    Protection RatingIP69K (dust/waterproof)
    Vibration ResistanceMIL-STD-810G compliant (up to 5Grms)
    Software & Security
    Configuration ToolsMobile app, PC software
    Firmware UpdatesOTA (Over-the-Air) support
    Data SecurityAES-256 encryption, secure boot
    CertificationsCE, FCC, ISO 16750 (automotive), RoHS
    Physical
    Dimensions90mm × 60mm × 40mm (compact housing)
    Weight300g
    MountingAdjustable bracket (included)
    Warranty & Support2-year warranty, 24/7 technical support

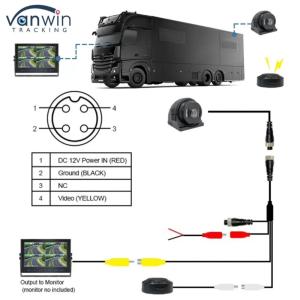

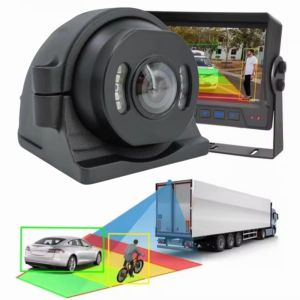

    BSD Camera Product Pictures


    Why choose us?

    We are a one-stop provider of vehicle-mounted monitoring systems dedicated to addressing vehicle safety, with fifteen years of professional experience. Our products comprehensively cover vehicle recorders, monitors, vehicle cameras, dash cams, and various expansion devices like fuel sensors, temperature sensors, fireproof boxes, alarms, tire pressure sensors and so on. We have provided customized solutions for hundreds of different customers in various application scenarios around the world, earning unanimous praise from our clients. We always uphold a sincere, kind, and enthusiastic service attitude, considering all aspects for our customers and bringing them value far beyond the products themselves.

    FAQ
    1. Q: How do I install a vehicle camera on my bus?
    A: We have detailed product installation and operation instructions to help you install and use this vehicle camera better and faster.

    2. Q: Is this camera suitable for use on the subway?
    A: Yes, this product is suitable for all
    large transport vehicles.


    3.Do the camera systems work at night?

    Yes - most of our cameras come with infra-red lights and all come with excellent night vision.

    4. Q: Does your company support customized services?
    A: Yes, we have provided customized solutions for many customers to meet their specific needs, with a customer satisfaction rate of 99%. If you have customized requirements for the vehicle monitoring system, please send it to us by email.
