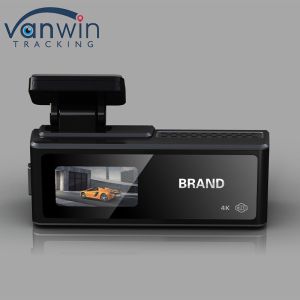

Mini 120 ° Wide-Angle Driving Recorder AHD 1080P With GPS Support
What’s A Car Dash Cam?
If you own a car and don’t know what a dash cam is then you are
definitely missing out on a big thing from your everyday
accessories!
To put it easily, dash cams are regular cameras which can be
mounted on the dashboard of your car and because of that is called
a dash cam.
A dash cam can be attached to other places than just the dashboard.
Such as the windshield, the seats, and other places.
If you’re looking to buy a dash cam, I must tell you that it’s not
an easy task to choose a brand
but it’s also not very hard because every dash cam has a few core
qualities that are maintained in each and every one of them.
Most of them run on 12V DC, have a feature which allows them to
record non-stop and they have the capability to automatically
overwrite the previous data and store newly recorded data.
AI driving recorder parameters:
| Product Parameters Of Driving Recorder |
|
|
hard
piece
ginseng
number | processor | SA220 |
| FLASH | 16M |
| DDR | 1G |
| Image sensor | GC4653 (WDR) optional AHD1080P |
| camera lens | Four or six sets of all glass lenses |
| Aperture | F1.8 |
| Diagonal | 120 ° wide-angle |
| Display Size | 1.5 inches |
| display | Resolution 320 × 172 |
| Maximum video resolution | 4K(3840*2560) |
| Encoding ability | Dual channel: 3840 * 12560 30 fps+1920 * 1080 25 fps |
| 4K(3840*2560) |
| Video encoding format | H. 264 encoding, H.265 encoding stored in TS format |
| Effective pixels | Single 8 million/front 4 million+back 2 million pixels |
| Photo format | JPEG |
| Collision sensor | Three axis acceleration sensor |
| Record mode | Loop recording without missing a second |
| Storage | TF card (Class 10 or above, maximum support 128GB) |
| Working voltage | 12V |
| Working current | 250mA (typical value) (DC 12V) |
| Static current | 1mA |
| Storage temperature (℃) | (-30℃-80℃) |
| Operating temperature (℃) | (-15℃-75℃) |
| Operating humidity (℃) | 15%-60%RH |
| Battery type | Button battery ML621 (optional) |
| Wide voltage adaptive | Suitable for in car power supply environment (5V/12V) |
soft
piece
ginseng
number | Chinese voice control | Support (optional) |
| English voice control | Not supported (optional) |
| Power off video saving | Support (power-off video can be played) |
| Time synchronization reminder | Support (voice prompt when time is not synchronized) |
| Parking monitoring (time-lapse recording) | Support (protection voltage 11.8V) |
| GPS function | Support (optional) |
Mini dash cam FQA:
1. Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code
after you buy our equipment.
2. What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
3. Which OS can run this software?
server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both
32bit and 64bit.
4. After we build our own server, can the IP of units be changed
remotely?
Actually we can provide the protocol package for you to develop
your own CMS. You could remotely change the settings of your
vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are
very pleased to help you.
