1080P Wide-Angle Front And Rear Side View Camera Night Vision AHD
Car Bus Truck Reversing Rearview Camera
Features of the left and right reversing monitoring cameras:
*AHD (PAL) technology and 1080P metallic glass lens provide you
with clear, vivid, and colorful images while driving.

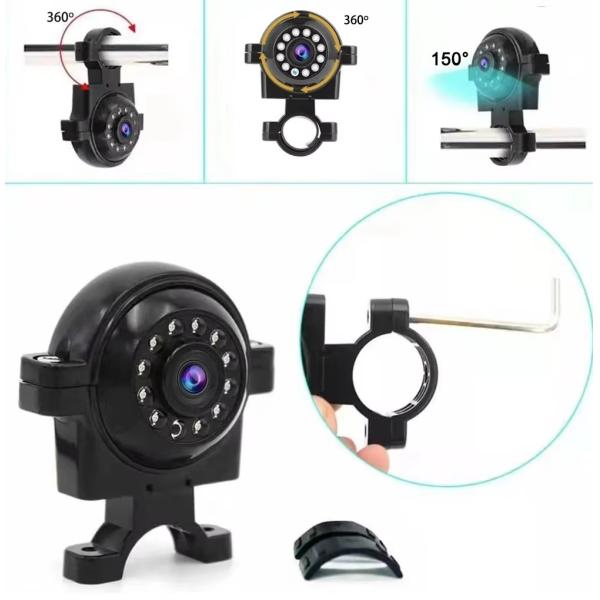

*Easy to install, simply hang it on the rearview mirror of a bus or
truck. 360 degree rotatable lens and mounting bracket,
the camera can provide left or right blind spots.
*The camera supports 360 ° rotation and 150 ° viewing angle, making
it easy to cover more lace points on the left and right sides.
*Built in 11 infrared light-emitting diodes, supporting infrared
night vision. Mainly used in dark environments with no visible
light or low light levels. Automatic day/night vision switch with
IR-CUT filter.
*Adopting a mirror design, this camera is mainly used for
left/right side view and rearview monitoring. If the mirroring
function
is not required, you can choose a factory non mirroring design or
use an AHD monitor or DVR to change the mirroring.
*Metal casing, waterproof/dustproof lens design, no need to worry
about outdoor rainy, dusty, and snowy days.
Reverse Camera Specification:
| CMOS / AHD 1080P / AHD 720P |
| 1280(H)x720(V) / 1 Megapixels |
| 1920(H)x1080(V) / 2 Megapixels |
| PAL/NTSC |
| 120° - 170° |
| 8 pcs |
| 3.6mm |
| |
| |
| |
| |
| 4-PIN aviation or RCA connector optional |
Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong
voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a
good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation
and repair. By no
means, this camera shall not be repaired or dismantled on
customer's own.
Manufacturer holds no responsibility in case of unauthorized
repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power
supply and contact us.
A high-quality product:
1. Image sensor and PCB board
SJS directly uses genuine sensors from Sony, Panasonic, OmniVision,
and PixelPlus.
2. Lens
SJS uses a full glass lens with 5 layers instead of 3 layers to
ensure the best quality of the camera.
3. Waterproof
SJS selects high-quality silicone adhesive for waterproof sealing,
and IP68 testing (equivalent to 10 meters of water pressure)
provides high requirements for each camera.
4. Camera casing
SJS uses a metal casing for long-lasting use.
5. Cable
SJS uses 8P/13p pure copper video cables with locking screw
connectors, providing clearer images and longer lasting use than
regular cables
6. Quality control
Firstly, 100% quality control of raw materials
Secondly, 100% inspection after assembly
Thirdly, 100% aging test
Fourth: 100% quality inspection of packaging production line
Fifth time: Sample inspection (MIL-STD-105E II (MA=1.5, MI=2.5)
standard)
Our defect rate is close to 0% before delivery and below 0.3% after
shipment.
7. Certification
Chief Executive, ROHS, Federal Communications Commission
8. After sales service/warranty
Our product comes with a 1-year warranty. Lifetime technical
support. But it does not include damage caused by improper use.
