4CH 720P 3G/4G Realtime Video GPS Tracking Mobile DVR with Bus People Counter all in one system.

1. The Video Counting Bus People Counter with binocular lens is developed based on advanced Video Counting&image analysis technology.
2. It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.
3. After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.
4. It can automatically filter backpack, luggage etc.

Applications:

Travel agencies passenger vehicles, bus vehicles, the company shuttle vehicles, passenger ships, stores and other vehicles.

System functions:

1. The number of passengers on the front and rear doors of the upper and lower passenger flow and the number of cars within the total number of separate statistics.

2. Users can directly access the number of IE counter, the region, direction, alarm conditions and other settings, the video screen video, capture.

3. Many people at the same time through the detection area, you can distinguish the direction of each person's flow.

4. Generate reports on the statistics

5. Number of counters to support multi-channel simultaneous statistics, 1 video local output, SD card storage, alarm input / output,

RS485 output.

3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter Kit includes:

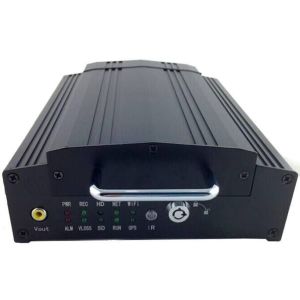

1. Main Unit(below)

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g

2. Binocular Camera

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.

3. Door Sensor

Door open/close sensor, is used for sensing the door open or close status.

4. 2~4 Monitoring Cameras

5. One monitor for Option

Main Parameter

1.1 Counting camera

• Image Sensor:1/3 SONY
• CCD TV System: PAL/NTSC
• TV Lines:700TVL
• Image Output: Synchronous sampling
• output Lens’ Spacing:5MM
• Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
• Viewing Angle:55 degree
• Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),
• 2.3M~2.5M(4MM len)
• Detecting Door Width Range:0.4M~1.2M
• White Balance: Auto Shutter:1/50-
• 1/80000(s) 1/60-1/80000(s) Frame
• rate:25 FTPS
• Video Output Interface: Composite video output, 75Ω 1Vp-p
• Aviation Gain: Auto
• SNR:＞48db
• Power Supply:DC12
• V Power:≤1W
• Working Temperature:-30～+55℃
• Relative Humidity:10%～90% Not condensed
• Cooling: no active cooling, passive structure with heat
• dissipation Product Size:155(L)*50(W)*55(H)MM
• Weight:0.32KG

1.2 Door sensor

• Contact Way: Connected when touch, disconnected when separate Max Power:10W
• Min Switch Voltage:100VDC
• Avalenche Voltage:200VDC Max Switch
• Current:0.5A Max Load Current:1A
• Max Contact Resistance:100mΩ
• Min Insulation Resistance:10~10Ω Moving Time:0.4ms
• Bounce Time:0.3ms
• Release Time:0.05ms
• Max Working Frequency:5000±400HZ Sensitivity:07-10AT
• Minimum Reset Index:5AT Max Contact
• Capacity:0.3pF Housing Material: Zinc Alloy
• Product Color: Gray
• Working Temperature:-30℃~80℃ Working Relative
• Humidity:≤95%(40℃)
• Sense Magnetic /Release Distance:35-45MM

1.3 Main MDVR
