AHD Car Dome Camera for bus

Ask Lasest Price
Brand Name :	Vanwin Tracking
Model Number :	VW-773
Certification :	CE/FCC/RoHS
Price :	negotiated
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	5,000pcs per month
Delivery Time :	2-3 days for samples, 5-10 days for large orders

Add to Cart

Product Details
Company Profile

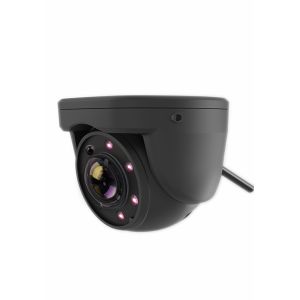

AHD Car Dome Camera for bus

1080P HD IP69K truck sideview camera ahd camera with super nightvision

Main Feature:

★ Support Coaxial HD output, high resolution achieve to 720P/960P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability
★ Side view camera which with mirror arm mount bracket and without drilling installation,

commonly use in school bus,van, harvester, excavator etc.

Main Specifications

Image sensor	CMOS	Starlight CMOS	CMOS
Horizontal Resolution	1.3Megapixel	1.3Megapixel	2.0Megapixel
TV system	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixel	1280(H)*960(V)	1280(H)*960(V)	1920(H)*1080(V)
Minimum Illumination	Color 0.1Lux,0 Lux with IR	Color 0.01Lux,0 Lux with IR	Color 0.05Lux,0 Lux with IR
S/N ratio	≥45dB	≥60dB	≥56dB
Day/Night mode	EXT(default),AUTO,COLOR,B/W,Support IR CUT switching
sync system	Internal
Backlight compensation	AUTO
White balance	AUTO
Electronic shutter	AUTO/1/50(1/60)-1(50,000Sec)
Video output	AHD(default)Standard,720P output		AHD(default)Standard,1080P output
lens	170°/150°/120°/More optional		150°/120°/More optional
IR leds Qty	6pcs LEDs
IR distance	≤3 meters
waterproof grade	IP69K
Operating Temp.	-20°C~+70°C, RH95%MAX
Storage Temp	-30°C~+80°C, RH95%MAX
Power supply	DC12V±10%
Power consumption	≤2W

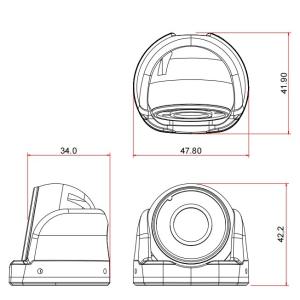

Dimension	47.841.991.4(mm)

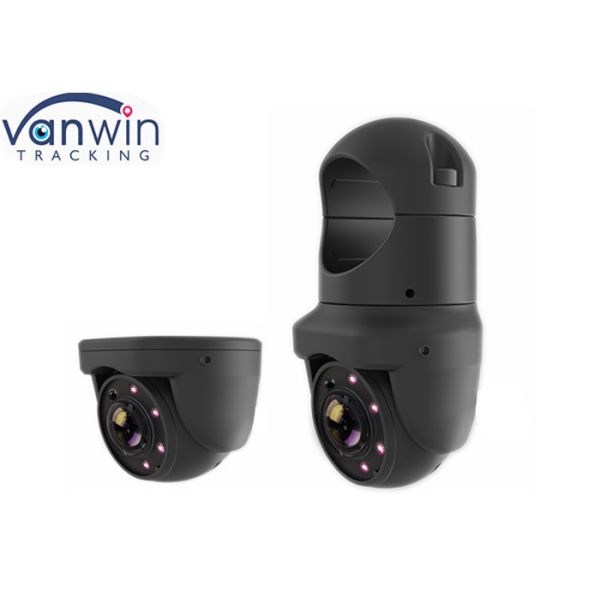

Product pictures

The package per box:

It includes one car camera, 3pcs screws, 2pcs L hexagon wrenchs and one user manual.

Notes:

(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact us.
